A085FW02 V0 touch screen panel LCD display TFT Module
تفاصيل المنتج:
| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | AUO |
| رقم الموديل: | A085FW02 V0 |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 1 قطعة |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | التغليف الأصلي / صندوق التغليف التقليدي |
| وقت التسليم: | 7 أيام |
| شروط الدفع: | تي / تي ، ويسترن يونيون |
| القدرة على العرض: | 100000 وحدة / وحدات شهريا |
|
معلومات تفصيلية |
|||
| نموذج P / N: | A085FW02 V0 | الحجم القطري: | 8.5 بوصة |
|---|---|---|---|
| دقة: | 480 (RGB) × 234 ، 63PPI | منطقة نشطة: | 187.2 (H) × 105.3 (V) ملم |
| حجم المخطط التفصيلي: | 199 (عرض) × 119 (ارتفاع) ملم | سطوع: | 250 شمعة / متر مربع (نموذجي) |
| نسبة التباين: | 300: 1 (نموذجي) (TM) | طلب: | مشغل دي في دي محمول بإطار صور رقمي |
منتوج وصف

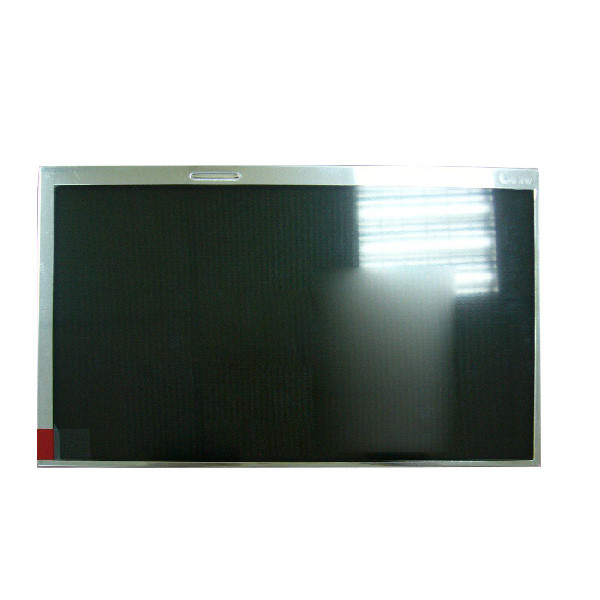

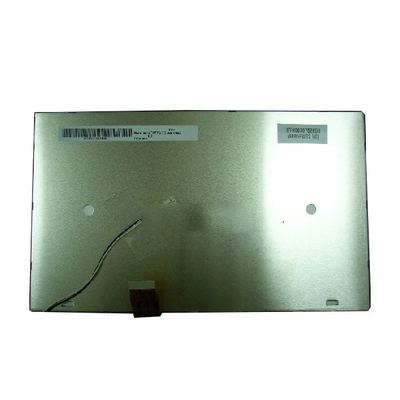

A085FW02 V0 touch screen panel LCD display TFT Module
A085FW02 V0 Product details :
| AUO LCD SCREEN A085FW02 V0 | |
| Panel Brand | AUO |
| Model Name | A085FW02 V0 |
| Screen size | 8.5inches |
| Screen type | a-Si TFT-LCD, LCD module |
| Resolution | 480(RGB)×234, 63PPI |
| Pixel Format | RGB Vertical Stripe |
| Display size | 187.2(H)×105.3(V) mm |
| Outline | 199(W)×119(H) mm |
| Surface | Antiglare |
| Brightness | 250 cd/m² (Typ.) |
| Contrast | 300:1 (Typ.) (TM) |
| Work Mode | TN, normally white display, transmissive |
| Viewing angle | 65/65/50/65 (Typ.)(CR≥10) |
| Response | 12/18 (Typ.)(Tr/Td) |
| Color Depth | Full color |
| Backlight type | 6S1P WLED, 10K hours, without driver |
| Screen weight | 192±10g |
| Used for | Digital Photo Frame Portable DVD Player |
| Touchscreen | Without |
| Signal Type | TFT Specific Analog RGB, 26 pins, FPC |
| Supply voltage | 5/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
| Maximum | Working: -10 ~ 60 °C; Storage: -20 ~ 70 °C |
| A085FW02 V0 touch screen panel LCD display TFT Module | |
